6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션

6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션
6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션 6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션

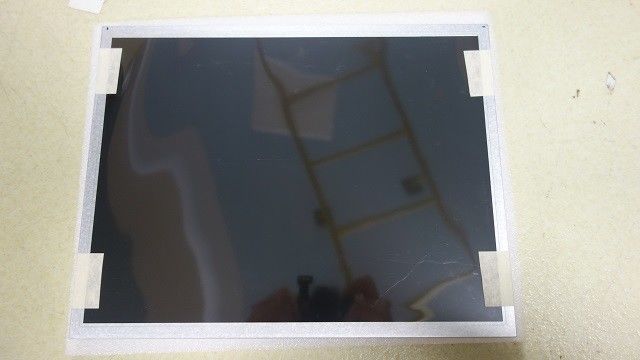

큰 이미지 :  6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션

제품 상세 정보:
원래 장소: 대만
브랜드 이름: AUO
모델 번호: G150XTN06.B
결제 및 배송 조건:
최소 주문 수량: 500
가격: pls contact us
포장 세부 사항: 표준 패키징
배달 시간: 5-8 작업 일수
지불 조건: PAPLY 웨스턴 유니온은 전송을 쌓아 올립니다
공급 능력: 500

6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션

설명
브랜드: AUO 모델: G150XTN06.B
대각선 사이즈: 15.0 인치 타입: Si TFT-LCD, LCM
픽셀 포맷: 1024년 [XGA] 85PPI 터치 패널: 없이
하이 라이트:

15 인치 AUO 엘시디 판넬

,

반대 사려깊은 AUO LCD Panel

,

G150XTN06.비

6485K G150XTN06.B 15 Inch AUO LCD Panel 1024×768 Anti Reflection



G150XTN06.B AUO 15" LCM 1024×768 Without Touchscreen And Industrial,outdoor High Brightness

AUO G150XTN06.B Optical Details

Basic Information :
Luminance
800 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
5.7/2.3 (Typ.)(Tr/Td) ms
Viewing Angle
80/80/70/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
84% coverage
Adobe RGB
63% coverage
DCI-P3
63% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  • 6485K G150XTN06.B 15 인치 AUO 엘시디 판넬 1024×768 안티 리플랙션 0 Back to Top

AUO G150XTN06.B Mechanical Details

Pixel Features :
Number of Pixel
1024(RGB)×768, XGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.099×0.297 mm
Pixel Pitch(W×H)
0.297×0.297 mm [85PPI]
Physical Size :
Active Viewing
304.128(W)×228.096(H) mm
Overall Dim.
326.5(W)×253.5(H) mm
Bezel Opening
311.9(W)×236.85(H) mm
Overall Depth
10.0 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.00Kgs (Max.)
Surface
Antireflection
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
