제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD | 활동 분야: | 246×184.5 mm |
|---|---|---|---|
| 개략: | 270×207.5 mm | 패널 크기: | 12.1 인치 |
| 해결: | 800×600 | 램프 종류: | 2 PC CCFL |
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

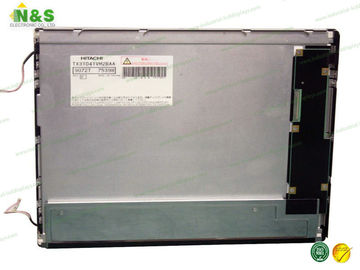

New and original TX31D41VM2BAA Normally White 12.1 inch 800×600 Outline 270×207.5 mm Lamp Type 2 pcs CCFL
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
TX31D41VM2BAA Basic Information
| Panel Model | TX31D41VM2BAA |
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
TX31D41VM2BAA Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Active Area | 246×184.5 mm (H×V) |
| Outline Dimension | 270×207.5 mm (H×V) |
| Outline Depth | 12.5 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TX31D41VM2BAA Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m2 (Typ.) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| BS050HDE-N41-6Q00 | BOE | 5.0" | 720×1280 |
| BV050HDE-N44 | BOE | 5.0" | 720×1280 |
| A101STN01.2 | AUO | 10.1" | 1024×600 |
| LH550WX1-SH03 | LG Display | 5.5" | 720×1280 |
| HSD055FHW2-D00 | HannStar | 5.5" | 720×1280 |
| HSD055BHW3-D00 | HannStar | 5.5" | 720×1280 |
| H546TAN01.4 | AUO | 5.5" | 720×1280 |
| LSC480AN02 | Samsung | 48" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
