제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD | 패널 크기: | 15.0 인치 |
|---|---|---|---|
| 활동 분야: | 304.1×228.1 mm | 개략: | 350×266.5 mm |
| 표면: | 안티 섬광 | ||
| 하이 라이트: | industrial touch screen display,industrial lcd screen |
||

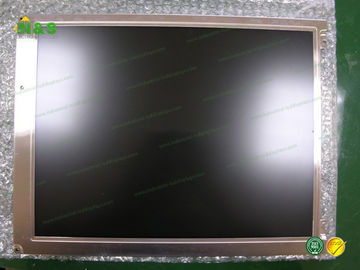

Normally White CLAA150XA03 CPT 15.0 inch Active Area 304.1×228.1 mm Surface Antiglare Frequency 60Hz new and original
CLAA150XA03 Basic Information
| Panel Model | CLAA150XA03 |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Optical Compenation Film |
CLAA150XA03 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.30Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 308.1×232.1 mm (H×V) |
| Outline Dimension | 350×266.5 mm (H×V) |
| Outline Depth | 14.5 (Typ.) mm |
| Holes & Brackets | Face mounting holes (3-Φ3.5, 2-R1.57) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA150XA03 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 13/27 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.328 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV550QUB-B10 | BOE | 55" | 3840×2160 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| HSD045F8W1-C01 | HannStar | 4.5" | 480×854 |
| H160QVN01.0 | AUO | 1.6" | 320×320 |
| LSN133DL01-A02 | Samsung | 13.3" | 2560×1600 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LSC480HN08 | Samsung | 48" | 1920×1080 |
| TM050JYHP05 | Tianma | 5.0" | 720×1280 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
