제품 상세 정보:
|
| 패널 크기: | 15.0 인치 | 해결: | 1400×1050 |
|---|---|---|---|
| 명암비: | 400:1 (Typ.) | 주파수: | 60 hz에서 |
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

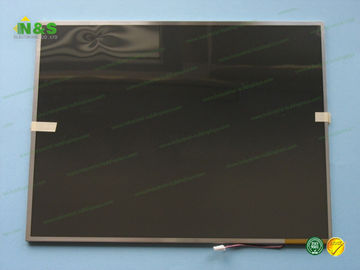

Normally White 15.0 inch N150P5-L02 CMO 1400×1050 resolution Outline 317.3×242×6 mm Contrast Ratio 400:1 (Typ.)
N150P5-L02 Basic Information
| Panel Model | N150P5-L02 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1400×1050 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N150P5-L02 Mechanical Features
| Dot Resolution | 1400(RGB)×1050 (SXGA+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 116 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2175 mm (H×V) |
| Pixel Pitch | 0.2175×0.2175 mm (H×V) |
| Weight | 530/550g (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.5×228.375 mm (H×V) |
| Bezel Area | 308.1×232.0 mm (H×V) |
| Outline Dimension | 317.3×242 mm (H×V) |
| Outline Depth | 5.7/6.0 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N150P5-L02 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SXGA060SC | OLiGHTEK | 0.6" | 1280×1024 |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| ECX112AKW-6 | SONY | 24.5" | 1920×1080 |
| ECX114AKW-6 | SONY | 16.5" | 1920×1080 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| KAM043AN02 | Visionox | 4.3" | 540×960 |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
