제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD | 패널 크기: | 5.0 인치 |
|---|---|---|---|
| 해결: | 800×480 | 표면: | 단단한 코팅 |
| 명암비: | 500:1 (Typ.) | 주파수: | 60 hz에서 |
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

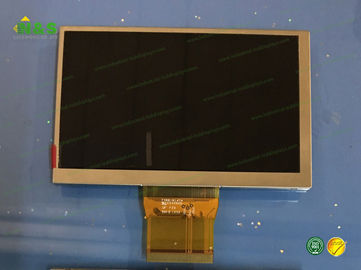

Normally White CLAA050LA0ACW TFT LCD Module CPT 5.0 inch Active Area 108×64.8 mm Outline 118.5×77.5×3.1 mm
CLAA050LA0ACW Basic Information
| Panel Model | CLAA050LA0ACW |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,5.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
CLAA050LA0ACW Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 188 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.045×0.135 mm (H×V) |
| Pixel Pitch | 0.135×0.135 mm (H×V) |
| Weight | 65g (Max.) |
| Surface | Hard coating |
| Active Area | 108×64.8 mm (H×V) |
| Bezel Area | 110.6×67.4 mm (H×V) |
| Outline Dimension | 118.5×77.5 mm (H×V) |
| Outline Depth | 2.8±0.3 mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA050LA0ACW Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH550WF2-SH01 | LG Display | 5.5" | 1080×1920 |
| M280DGJ-Q02 | Innolux | 28.0" | 3840×2160 |
| LC490EGY-SHM1 | LG Display | 49" | 3840×2160 |
| LC390TU1A | PANDA | 39" | 1366×768 |
| CLAN043LL31 1DN | CPT | 4.3" | 480×800 |
| CLAN050LL31 1XG | CPT | 5.0" | 480×800 |
| CLAN050LG41 1XB | CPT | 5.0" | 540×960 |
| H501VAN01.0 | AUO | 5.0" | 480×800 |
| H546AAN01.1 | AUO | 5.5" | 540×960 |
| HSD060FHW1-D00 | HannStar | 6.0" | 720×1280 |
