제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD, LCM | 패널 크기: | 8.4 인치 |
|---|---|---|---|
| 해결: | 800×600 | 명암비: | 250:1 (Typ.) |
| 활동 분야: | 170.4×127.8 mm | 개략: | 199.5×149.5 mm |
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

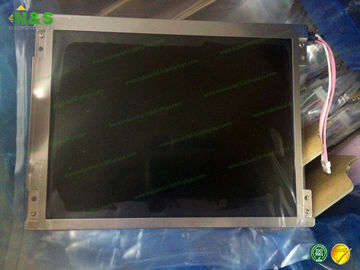

Normally White LTM084P363 TFT LCD Module TOSHIBA 8.4 inch Active Area 170.4×127.8 mm Outline 199.5×149.5 mm
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH450WX5-SH02 | LG Display | 4.5" | 720×1280 |
| LSC400HN02-W | Samsung | 40" | 1920×1080 |
| HV320WHB-N06 | BOE | 31.5" | 1366×768 |
| LH500WX4-SH01 | LG Display | 5.0" | 720×1280 |
| LC470DUT-SEF2 | LG Display | 47" | 1920×1080 |
| P080DCE-3F0 | Innolux | 8.0" | 800×1280 |
| BP070WS7-500 | BOE | 7.0" | 1024×600 |
| PJ055IC-01A | Innolux | 5.5" | 1080×1920 |
| TV070WVE-N10 | BOE | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Quality Control:
1. Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
2. Function Inspection
Make sure all functions are 100% tested ok
LTM084P363 Basic Information
| Panel Model | LTM084P363 |
| Panel Brand | TOSHIBA |
| Descrition | LTPS TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
LTM084P363 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 395g (Typ.) |
| Active Area | 170.4v127.8 mm (H×V) |
| Bezel Area | 173.4×130.8 mm (H×V) |
| Outline Dimension | 199.5×149.5 mm (H×V) |
| Outline Depth | 12.0 (Max.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LTM084P363 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m2 (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Sunlight Readable | N |
