제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD | 패널 크기: | 12.1 인치 |
|---|---|---|---|
| 해결: | 800×600 | 활동 분야: | 246×184.5 mm |
| 명암비: | 500:1 (Typ.) | 전시 색깔: | 262K (6 조금) |
| 주파수: | 60 hz에서 | ||
| 하이 라이트: | industrial touch screen display,industrial lcd screen |
||

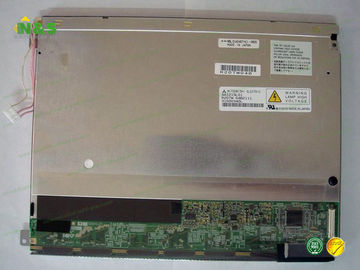

Normally White AA121SL01 12.1 inch 800×600 Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)
AA121SL01 Basic Information
| Panel Model | AA121SL01 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51512D121J-FW-A-AB |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
AA121SL01 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 740g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA121SL01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.332; Wy:0.367 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
