제품 상세 정보:
|
| 패널 크기: | 12.1 인치 | 해결: | 800×600 |
|---|---|---|---|
| 활동 분야: | 246×184.5 mm | 개략: | 280×210×12.5 mm |
| 주파수: | 60 hz에서 | ||
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

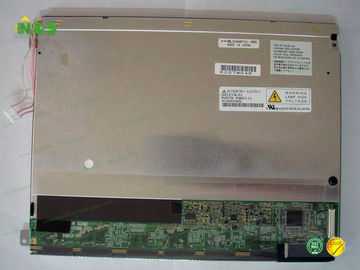

Normally White Mitsubishi AA121SL01 Industrial LCD Displays with 246×184.5 mm Active Area Frequency 60Hz
AA121SL01 Basic Information
| Panel Model | AA121SL01 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51512D121J-FW-A-AB |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
AA121SL01 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 740g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA121SL01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.332; Wy:0.367 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV320WHB-N06 | BOE | 31.5" | 1366×768 |
| LH500WX4-SH01 | LG Display | 5.0" | 720×1280 |
| LC470DUT-SEF2 | LG Display | 47" | 1920×1080 |
| P080DCE-3F0 | Innolux | 8.0" | 800×1280 |
| BP070WS7-500 | BOE | 7.0" | 1024×600 |
| PJ055IC-01A | Innolux | 5.5" | 1080×1920 |
| TV070WVE-N10 | BOE | 7.0" | 800×480 |
| LSC550HJ11 | Samsung | 55" | 1920×1080 |
| PP050IA-03B | Innolux | 5.0" | 1080×1920 |
