제품 상세 정보:
|
| 패널 유형: | Si TFT-LCD | 패널 크기: | 6.5 인치 |
|---|---|---|---|
| 해결: | 640×480 | 개략: | 154×121 mm |
| 전시 색깔: | 262K (6 조금) | 주파수: | 60 hz에서 |
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

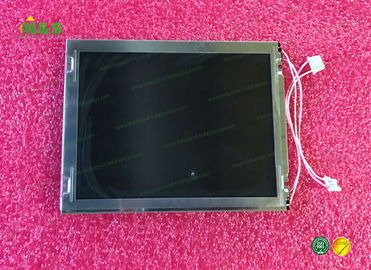

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz
AA065VB07 Basic Information
| Panel Model | AA065VB07 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51952D065J-FW-A-ADN |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Remarks | Mechanically Symmetric Design |
AA065VB07 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 205g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 132.48×99.36 mm (H×V) |
| Bezel Area | 135.5×102.4 mm (H×V) |
| Outline Dimension | 154×121 mm (H×V) |
| Outline Depth | 11.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-R1.25); Side mounting holes (4-M2) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA065VB07 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
