제품 상세 정보:
|
| 패널 크기: | 12.1 인치 | 해결: | 1280×800 |
|---|---|---|---|
| 개략: | 276.8×180×6.8 mm | 명암비: | 500:1 (Typ.) |
| 주파수: | 60 hz에서 | ||
| 강조하다: | industrial lcd screen,industrial lcd panel |
||

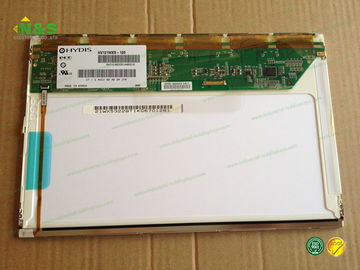

Normally Black 12.1 inch HV121WX5-120 HYDIS with 261.12×163.2 mm Active Area Contrast Ratio 500:1 (Typ.)
HV121WX5-120 Basic Information
| Panel Model | HV121WX5-120 |
| Panel Brand | HYDIS |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HV121WX5-120 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 124 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.068×0.204 mm (H×V) |
| Pixel Pitch | 0.204×0.204 mm (H×V) |
| Weight | 256g (Typ.) |
| Active Area | 261.12×163.2 mm (H×V) |
| Bezel Area | 265.1×167.2 mm (H×V) |
| Outline Dimension | 276.8×180 mm (H×V) |
| Outline Depth | 6.5±0.3 mm |
| Holes & Brackets | Side mounting holes (9-M2) on left, right, up bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HV121WX5-120 Optical Features
| Display Mode | AFFS, Normally Black, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
