제품 상세 정보:
|
| 패널 크기: | 15.6 인치 | 해결: | 1920×1080 |
|---|---|---|---|
| 활동 분야: | 334.16×193.59 mm | 표면: | 안티 섬광 |
| 하이 라이트: | industrial touch screen display,industrial lcd screen |
||

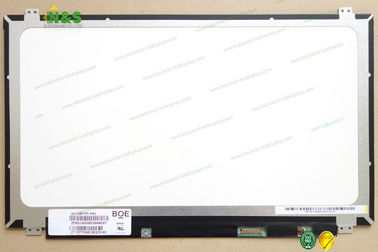

NT156FHM-N41 BOE with 334.16×193.59 mm Active Area Contrast Ratio 500:1 (Typ.) Input Voltage 3.3V (Typ.)
NT156FHM-N41 Basic Information
| Panel Model | NT156FHM-N41 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
NT156FHM-N41 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 144 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Antiglare |
| Active Area | 334.16×193.59 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT156FHM-N41 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TT070WSB-NW0 | BOE | 7.0" | 1024×600 |
| TT101WSB-NW0 | BOE | 10.1" | 1024×600 |
| TT070WSQ-N10 | BOE | 7.0" | 1024×600 |
| BP080WX7-200 | BOE | 8.0" | 800×1280 |
| HV280WX2-280 | BOE | 27.5" | 1366×768 |
| BP080WX7-101 | BOE | 8.0" | 800×1280 |
| TV070WSU-N40 | BOE | 7.0" | 600×1024 |
| BF045WVE-400 | BOE | 4.5" | 480×854 |
| BP096WX7-100 | BOE | 9.6" | 800×1280 |
| BF050QHE-400 | BOE | 5.0" | 540×960 |
