제품 상세 정보:
|
| 패널 크기: | 11.6 인치 | 휘도: | 220 cd/m ² (Typ.) |
|---|---|---|---|
| 전망 방향: | 6 시 | 명암비: | 500:1 (Typ.) (TM) |
| 프레임 속도: | 60 hz에서 | ||
| 하이 라이트: | industrial touch screen display,industrial lcd panel |
||

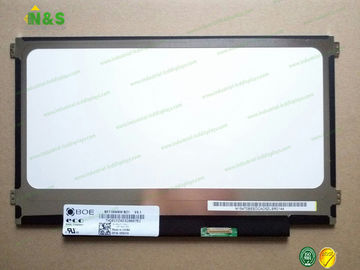

Normally White NT116WHM-N21 11.6 inch with 256.125(H)×144(V) mm Active Area Luminance 220 cd/m² (Typ.)
NT116WHM-N21 Basic Information
| Panel Model | NT116WHM-N21 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | for Dell |
NT116WHM-N21 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 135 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0625×0.1875 mm (H×V) |
| Pixel Pitch | 0.1875×0.1875 mm (H×V) |
| Weight | 210g (Max.) |
| Surface | Hard coating (7H) |
| Active Area | 256.125×144 mm (H×V) |
| Outline Dimension | 268×168 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT116WHM-N21 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.28/1.67 (Max.)(5/13 points) |
| Sunlight Readable | N |
