제품 상세 정보:
|
| 패널 크기: | 15.6 인치 | 해결: | 1366×768 |
|---|---|---|---|
| 표면: | 안티 섬광 | 명암비: | 500:1 (Typ.) |
| 주파수: | 60 hz에서 | ||
| 하이 라이트: | industrial lcd screen,industrial lcd panel |
||

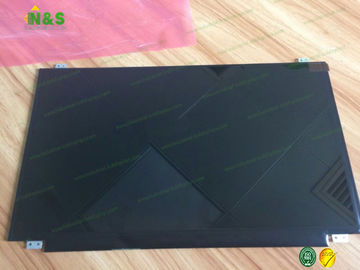

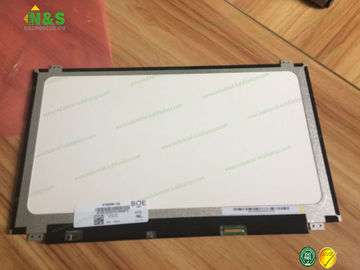

NT156WHM-N42 BOE Surface Antiglare 15.6 inch, 1366×768 tft lcd module Outline 359.5×223.8×3.2 mm
NT156WHM-N42 Basic Information
| Panel Model | NT156WHM-N42 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
NT156WHM-N42 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Antiglare |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT156WHM-N42 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
